20x40 Complete With Windows

20x40 Complete With Windows

Regular price $1,480.00 USD
Regular price Sale price $1,480.00 USD
Sale Sold out

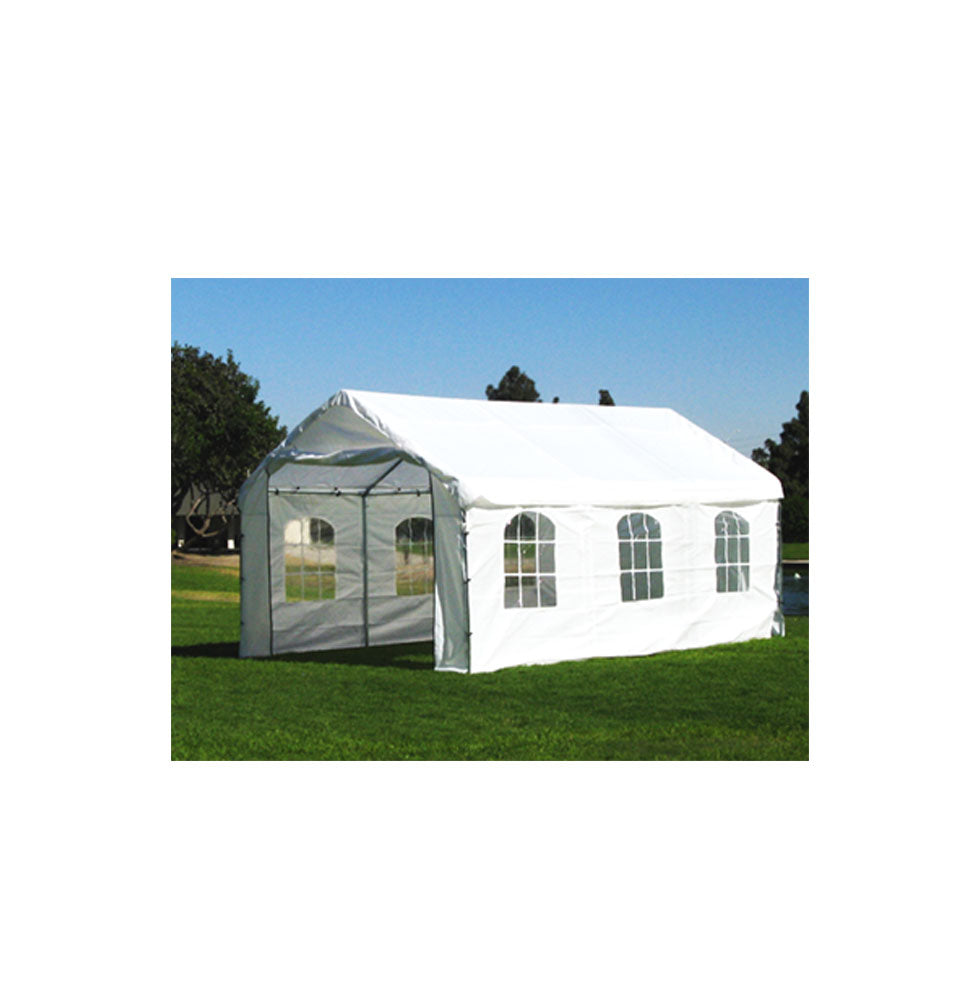

The 20’ x 40’ complete with windows canopy is a high peak “A” shaped frame canopy. The canopy includes a 20’x40’ valance tarp, a 20’ front side, a 20′ back side,

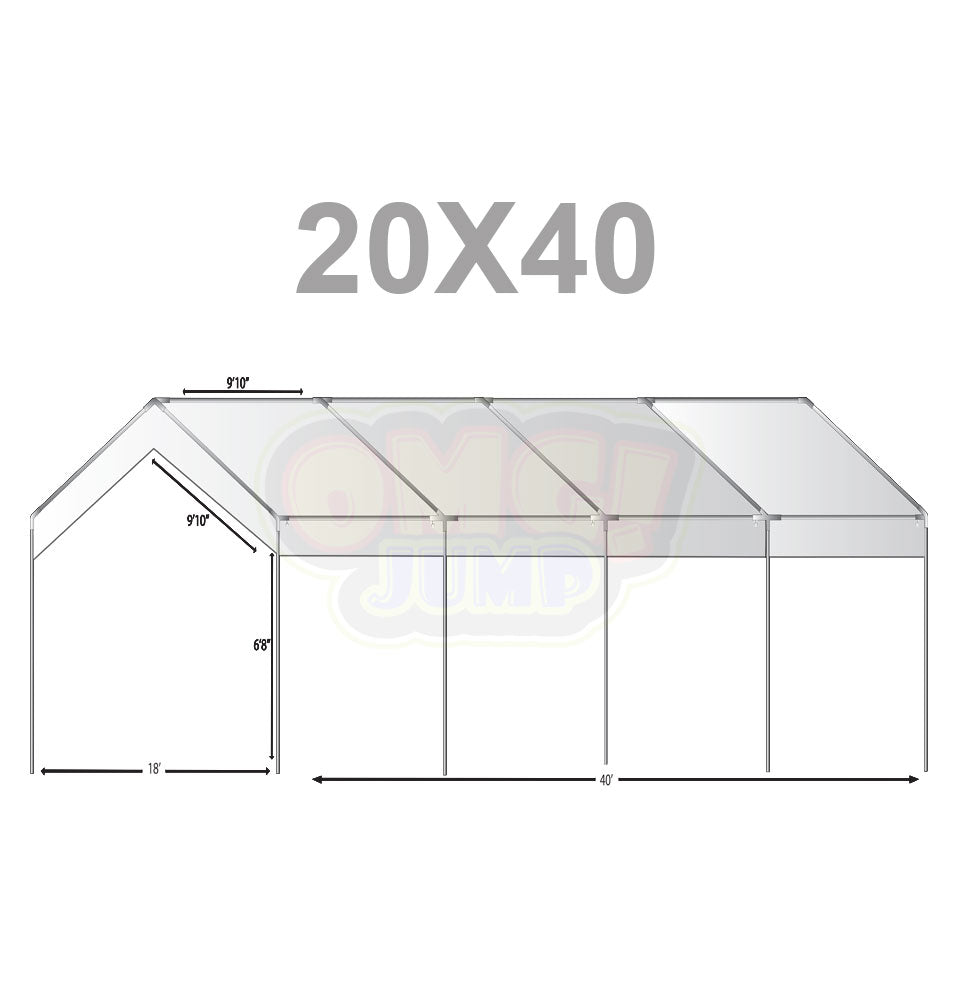

two 40’ wall sides with windows, a frame ending in 18’x40’ and bungees. The 2 foot difference between the tarp and the frame is due to the high peak ( also known as

“A” shaped”) frame. The canopy frame uses American galvanized piping. The standard and recommended pipe size for this frame is 1 3/8” (16 gauge). The extra

heavy-duty valance top cover is also recommended and preferred for all party tents.



Product Specifications



9’10” Pipes  22 PCS 6’8″ Pipes  10 PCS
40′ Side Wall with Windows 2 PCS 3 -Way Fitting 6 PCS
4 -Way Fitting 9 PCS Bungees 200 PCS
20×40 Top Cover: 1 pc 20′ Front Wall: 1 pc 20′ Back Wall: 1 pc
View full details
description

The 20’ x 40’ complete with windows canopy is a high peak “A” shaped frame canopy. The canopy includes a 20’x40’ valance tarp, a 20’ front side, a 20′ back side , two 40’ wall sides with windows, a frame ending in 18’x40’ and bungees. The 2 foot difference between the tarp and the frame is due to the high peak ( also known as “A” shaped”) frame. The canopy frame uses American galvanized piping. The standard and recommended pipe size for this frame is 1 3/8” (16 gauge). The extra heavy-duty valance top cover is also recommended and preferred for all party tents. The “valance” is the extra flap that goes over the edges of the canopy for more coverage and optional full enclosure. Each tarp features grommets every 18 inches and pull ties at all four corners, which tighten the cover for a more secure fit.Valance tarps are waterproof, rot-proof, and UV resistant. These heavy duty tents are meant to be installed for outdoor events and parties. These tents can be assembled and packed up with minimal tools. This canopy can be used on most surfaces, but should be secured with either cement blocks or sandbags for the safety of your customers.
Includes:

  • 9′ 10″ Pipe – 22 pieces
  • 6′ 8″ Pipe – 10 pieces

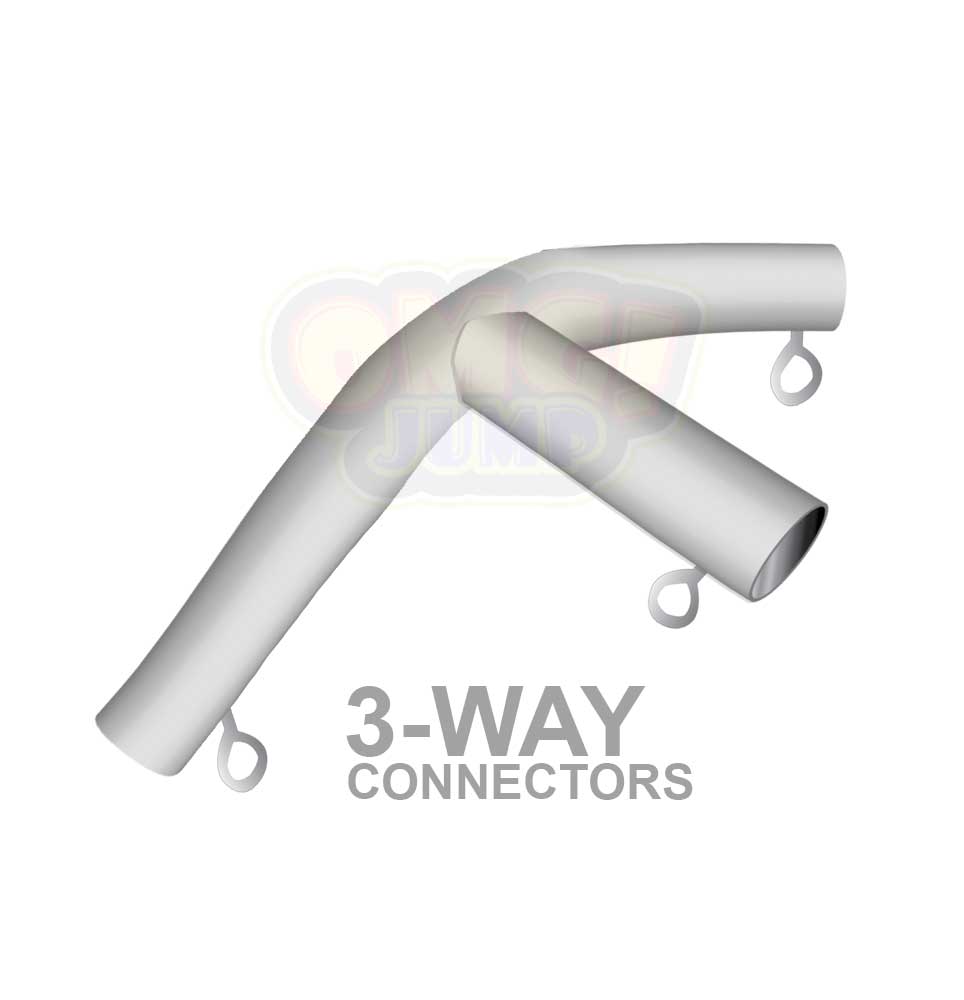

  • 3- way Fitting: 6 pieces

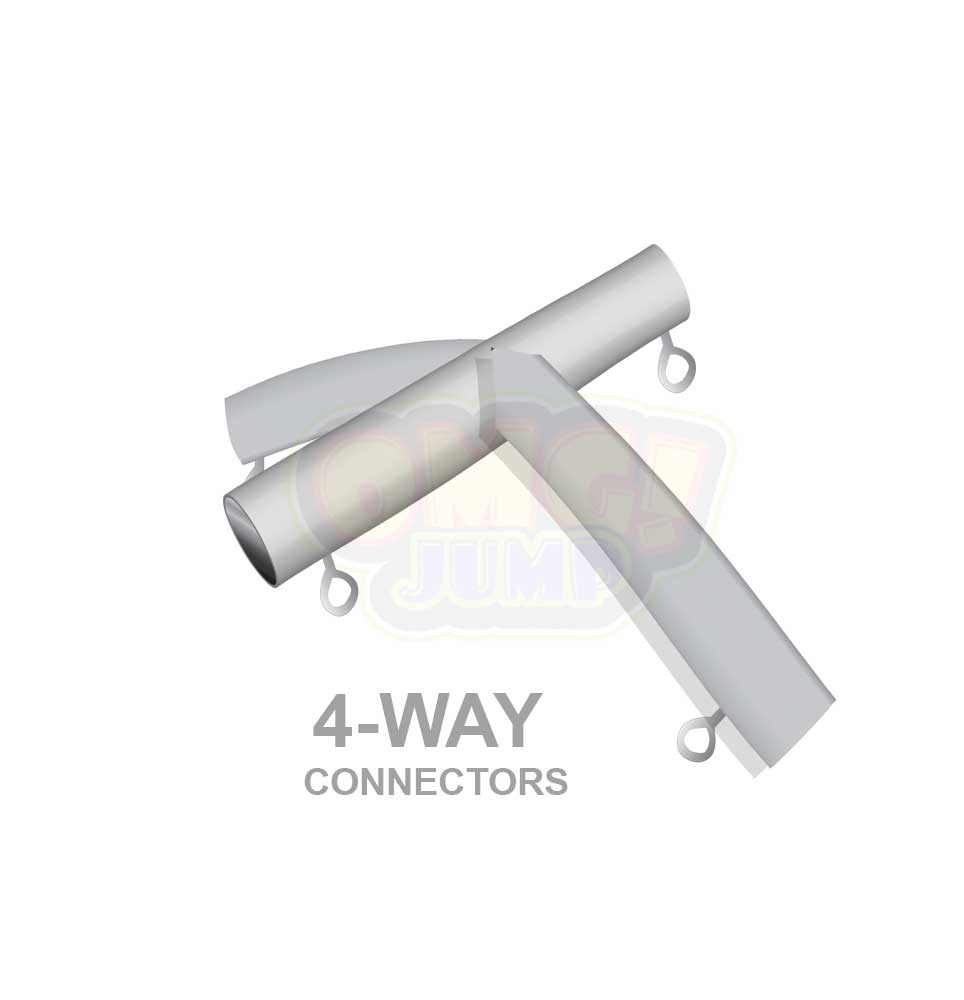

  • 4-way fitting: 9 pieces
  • 200 Bungees
  • 20×40 Top cover with Valance: 1 piece
  • 20′ Front Wall: 1 piece
  • 20′ Back Wall: 1 piece
  • 40′ Side Wall with Windows- 2 pieces
